Three Acts of Translation

In translation, a cell interprets a series of codons found on a mRNA strand. Transfer RNA (tRNA) transfers amino acids to the ribosome to make protein. tRNA contains about 80 nucleotides that folds on itself. Like before, substances are always attached in the 3' end of a chain, in this case the amino acid attaches itself at the 3' end of tRNA. The ribosome takes the amino acid brought by the tRNA and adds it to the growing polypeptide chain.

Act I: Initiation

For the process of initiation to start, energy from the hydrolysis of GTP is needed. Proteins are made in the ribosomes of a cell. A ribosome has two parts, a smaller one and a bigger one. These parts are formed by the rRNA (ribosomal RNA). The smaller section of the ribosome looks for a special genetic sequence that is known as the start codon. A codon is a series of three bases that codes for a specific amino acid. The start codon is 5'AUG3' and it codes for methionine (Met). It attaches itself to the 5' end of the mRNA and moves the mRNA along until it finds the codon. Then, in the bigger part of the ribosome, tRNA arrives, with the help of an initiation factor, with the proper amino acid to build the protein.

Act II: Elongation

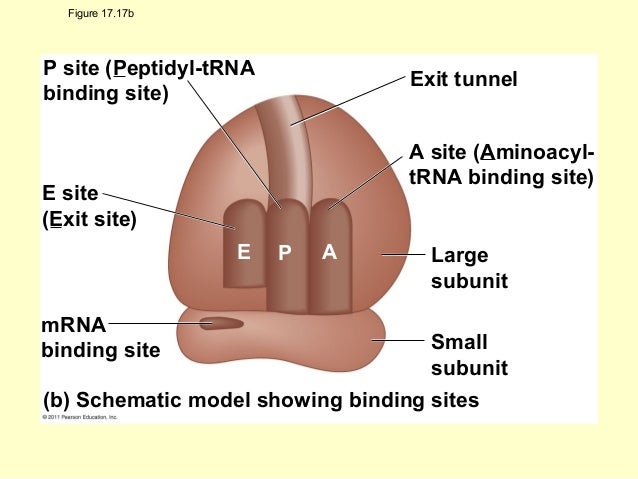

The larger unit of the ribosome has three binding sites for tRNA. The P site is where the tRNA holds the growing polypeptide chain, the A site is where another tRNA carries the amino acid for the next codon, and the E site is where the tRNAs leave the ribosome.

Elongation happens in three steps. First is codon recognition, where elongation factors help with hydrogen bonding between the mRNA and tRNA. On the tRNA, there is a section known as the anticodon. The anticodon which is contains the complementary base pairs of the codon. (eg. the start codon, AUG, would have the anticodon of UAC) The anticodon helps the tRNA attach to the right place on the mRNA. Next is the peptide bond formation in which the rRNA helps form a peptide bond between the amino acids in the P site and the A site. This separates the polypeptide chain attached to the tRNA in the P site to the tRNA in the A site. Last is translocation, where the tRNA in the A site is moved to the P site, and because the anticodon remains bonded with the mRNA, the mRNA moves along with it, allowing for a new tRNA with the right amino acid to bond in the A site. At the same time, the tRNA that was in the P site moves to the E site and is released. This ensure that all codons are read 5' to 3'. This process is repeated again and again until the entire protein is made.

Codons are made of three different bases, the last position of the codon is called the wobble position. This wobble is the second way to help decrease mutations in a protein. Usually, in a codon, the most important bases are the first two, if there is a mistake in the last one, it sometimes does not result in a faulty protein. The table below will help illustrate that.

As seen, more than one combination of bases can code for the same amino acid, allowing for some room for error.

Act III: Termination

Termination occurs when one of three stop codons approaches the A site. The stop codons are UAA/UAG/UGA. A release factor binds to the stop codon and hydrolyzes the polypeptide bond between the chain and the tRNA. This frees the protein from the tRNA and the entire translation complex dissociates.

The Three Acts of Transcription

Ever since the 1960s, there had been a clear link between DNA and proteins, however, the exact link remained unknown. Scientists came up with a theory called the Central Dogma of DNA. The Central Dogma of DNA is the idea that information is passed from the DNA to mRNA (messenger RNA) and then is synthesized into a protein.

Act I: Initiation
mRNA, a special type of RNA that is made in the process of protein-making is transcribed from a template of DNA in the nucleolus. First, to start the process, a group of proteins called the transcription factors attach themselves to the promoter region. The promoter region is a part of the gene sequence that marks where the gene begins, it is also known as upstream. In the promoter region is the TATA box, a genetic sequence that TFs bind to specifically. After the TFs have bonded to the promoter region, this signals another protein, RNA Polymerase II, to bind to the transcription factors. This entire group of protein creates what is called the transcription initiation complex.

Act II: Elongation
Polymerase II unwinds the double helix of the DNA, about 10 bases at a time and begins to synthesize pre-mRNA (AKA RNA transcript or primary RNA) Like always, new nucleotides are synthesized from 5' to 3'. During this synthesis, Polymerase II will begin to move downstream. Genetic information is only carried on one strand of the DNA, this strand is called the coding strand, also known as the sense strand. The coding strand is the strand that has the same genetic sequence as the newly synthesized pre-mRNA, with one exception: RNA does not have thymine, instead, it has a base called uracil. The template strand I (or antisense strand) is the complementary strand to the coding strand. Polymerase II uses the template strand to make complementary bases. The RNA tail becomes detached from the template strand as Poly II moves along.

Act III: Termination
As Polymerase II reaches the end of a gene, it will approach the terminator sequence which is a signal for Poly II to stop transcribing. In the terminator sequence, a sequence of "AAUAAA" will be found on the coding strand. Note that more than one Polymerase II can be working on a single gene at the same time.

Before pre-mRNA is sent out into the cytoplasm of the cell, several modifications need to happen. Because RNA is single stranded, it is unstable. The oxygen in RNA will react if it comes in contact with water. To combat this, a G-cap is added to the 5' end of RNA and a poly-A-tail (many adenines) is added onto the 3' end of RNA. As well as protection, the G-cap also acts as an "attach here" signal for ribosomes. The poly-A-tail helps in the export of the RNA into the cytoplasm.

Since there is no proof-reading, as there is in DNA synthesis, nature has implemented a few methods of ensuring there are a few mistakes as possible. The first method is called RNA splicing. In this process, "junk sequences," called introns are removed from the RNA. What is left after are only the exon sequences. The splicing is done by a spliceosome, a variety of proteins, including a few snRNPs (small nuclear ribonuclear proteins). Inside the snRNPs are snRNAs (small nuclear RNA molecules). These snRNAs recognizes intron RNA and bonds with it and then cuts the transcript RNA to release the intron and exons are connected together.

If any mutations occurred in the introns, they will have no effect on the final protein, since it is spliced away.

The Three Acts of DNA Replication

Act I: Initiation

A protein called gyrase first makes a small cut at both ends of the DNA strand, allowing the helicase to unwind the DNA easily. Then, a single stranded binding protein will bind with the single stranded DNA to prevent it from rebonding with its other strand. An enzyme called primase then lands on the DNA and adds an RNA primer to kickstart the DNA replication process.

Act II: Elongation

Polymerase 3 is attracted to the RNA primers that the primase left behind, and will begin to build the new daughter strand. It is important to remember that DNA can only be replicated in the 5' to 3' direction. This creates a problem at the replication fork because one parental strand is oriented 3' to 5' 5' into the fork while the other antiparallel parental strand is oriented 5' to 3' into the fork. Because of this, one side of the fork cannot replicate continuously. This can be shown in the image below.

The upper strand of parental DNA is flowing from 3' to 5' into the fork, this allows polymerase 3 to build a daughter strand 5' to 3' continuously. This strand is called the leading strand. On the other hand, the bottom parent strand flows from 5' to 3' into the fork, causing polymerase to need to build small sections at a time. These small sections are lagging strands, they are also known as Okazaki fragments.

Note that polymerase will not start building complementary base pairs on its own, it needs an RNA primer to start it off, therefore, primase still plays a role in elongation to start off all the Okazaki fragments.

Act III: Termination

After polymerase 3 has built the matching base pairs in the daughter strand, polymerase 1 goes to proofread the new strand, correcting any mistakes. Also, at this time, polymerase 1 will replace any RNA primers with DNA bases. After replacement, there is still a gap that is left between the two strands. An enzyme called ligase, a natural gluestick will go and connect the fragments together. It does this by forming phosphodiester bonds between the nucleotides.

Here's a gif of that in real life:
